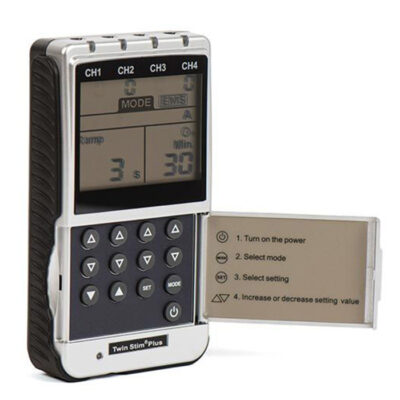

Richmar Twin Stim Plus TENS & EMS Combo, 4 Channels – 2nd Edition

$125.95

The Richmar Twin Stim Plus 2nd Edition combines five TENS modes and three EMS modes in a device with four channels and eight electrodes that can be operated in isolation or in pairs. The two timers each operate two channels, allowing more options for treatment.

The timers can be set for up to 60 minutes, and have automatic countdown and shut off. Panel cover protects controls once treatment settings selected. Device features a patient compliance meter.

Please note: This unit requires knowledge of electrotherapy settings. Always consult a healthcare professional before beginning any new electrotherapy.

In stock

Description

The timers can be set for up to 60 minutes, and have automatic countdown and shut off. Panel cover protects controls once treatment settings selected. Device features a patient compliance meter.

TwinStim Plus 2nd Edition is a Class II medical device and comes with a 1 year manufacturer’s warranty. MDALL 95651.

Twin Stim Plus Features

Patient compliance meter stores up to 60 sets of operation records and has total recording time of 999 min
4 channels, isolated between channels
5 TENS treatment modes: Burst, Modulation, Constant, MRW, SD1 and SD2
3 EMS treatment modes: Constant, synchronous, and alternate
Timer settings 1-60 minutes or continuous
Automatic timer countdown and off switch
Low battery indicator

What is Included with the Richmar Twin Stim Plus TENS/EMS Unit

1 TwinStim Plus 2nd Edition device
8 – 2” square adhesive electrodes
4 Lead wires
4 AA batteries
1 AC adaptor
1 Hard plastic carrying case
1 Instruction manual

Specifications

Specification	Value
Display	LCD
Channels	four, isolated between channels
Wave Form	Asymmetrical bi-phase square pulse
Amplitude	0-100 mA
Pulse Rate	2-150 Hz, adjustable 1Hz /step
Pulse Width	50-300µs, adjustable 10µs/step
TENS	Burst, modulation, constant, MRW, SD1 and SD2
EMS Modes	Constant, synchronous, alternate
Adjustable Ramp	1 to 8 sec, 1 sec/step
On/Off Time	2 to 90 sec, 1 sec/step
Pre-programs	No
Program Lock	No
Compliance Meter	Up to 60 sets of operations records and 999 hours
Timer	1-60 minutes or continuous
Low Battery Indicator	Yes
Battery	4 AA batteries
Size (LxWxD)	5.4″ x 2.4″ x 1″
Weight	425 g with battery
Warranty	1 year
MDALL	95651

Warranty

1 year manufacturer warranty.

Documents

Twin Stim Plus User Manual English

Twin Stim User Manual French

Additional information

Weight	592 g
Dimensions	19 × 5 × 17 cm
Channel	Four, isolated between channels
Pulse Amplitude	Adjustable, 0 ~ 80mA at 500 ohm Load each channel, 1mA/Step.
Waveform	Asymmetrical Bi-phase square pulse wave
Voltage	0 to 40V (Load:500ohm)
Battery Type	4 AA Batteries
Electrode type	2.0mm Pig Tail Style
Pulse Rate	Adjustable from 2 to 150 Hz, 1 Hz/step
Pulse Width	Adjustable, from 50 to 300μs, 10μs/step
On Time	Adjustable, 2~90 seconds, 1 Sec./Step
Off Time	Adjustable, 0~90 seconds, 1 Sec./Step
Ramp Time	Adjustable, 1~8 seconds, 1 Sec./Step. The “On” time will increase and decrease in the setting value.
Modes	B(Burst) , N(Normal) , M(Modulation) , SD1 (Strength Duration) , SD2 Two EMS Modes: S(Synchronous), A(Alternate)
